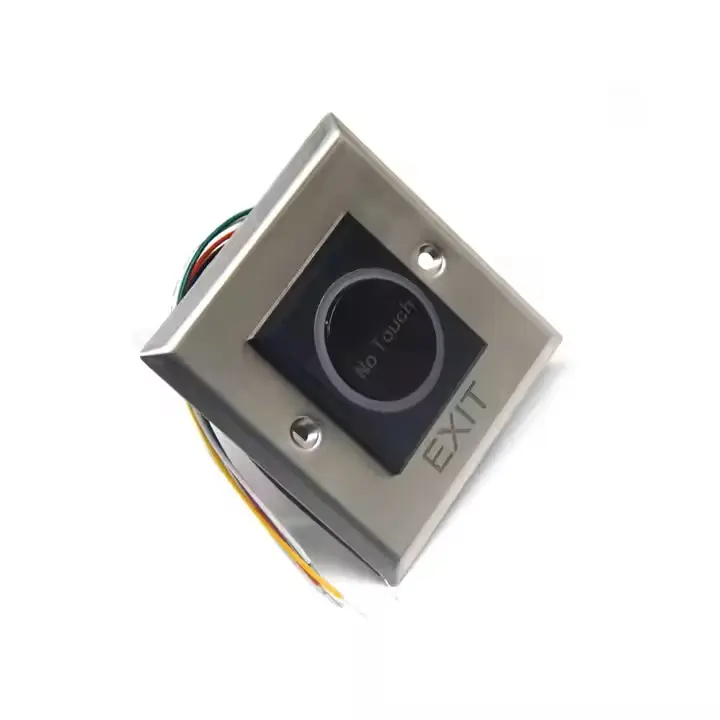

LED Indication Infrared Sensor Door Release Button Door Access Control No Touch Exit Button
No Touch Door Infrared Sensor Exit Button Switch for Access Control Systems Gates and Garage Openers
| Product Parameter | Parameter Description | ||
|---|---|---|---|
| Feature | Time-delay, Feedback Signal, NC | ||
| Face Plate | 205L x 30 x 38 (mm) | ||
| Voltage | 12VDC+ | ||
| Start Current | (start) 950mA, (standby) 120mA | ||
| Suitable For | Wooden doors, glass doors, metal doors, fireproof doors | ||
| Signal Output | Door status Output, NC/COM | ||
| Safety Function | Double protection currents, protection against damage, built-in voltage spike suppressor | ||
| Patent Design | Low temperature | ||
| Warranty | 12 months (except man-made faults) | ||
| Special Designed | 500,000 cycles | ||
| Weight | 550g | ||
Product Application
| Parameter | Description |
|---|---|
| Max. Current | 3A |
| Max. Voltage | DC 12V |
| Place of Origin | China |
| LED | Yes |
| Application | Home Appliance, Gate, Door, Exit, Automation Control |
| Material | Stainless Steel, Plastic & Metal |
| Smart Device | Yes |
| Switch Combination | 1NO 1NC |
| Product Name | LED Indication Infrared Access Control No Touch Exit Button |
| Dimensions | 80 × 30 × 25 mm |
| Output Contact | NO/NC/COM |
| Detection Range | 0.1 ~ 10 cm |
| Operating Temperature | -20℃ ~ +55℃ (14℉~131℉) |
| Humidity | 0–95% RH |
| Suitable for Door | Hollow Door |
| Protection Level | IP-55 |
