INTELLIGENT SERIES INTRODUCTION

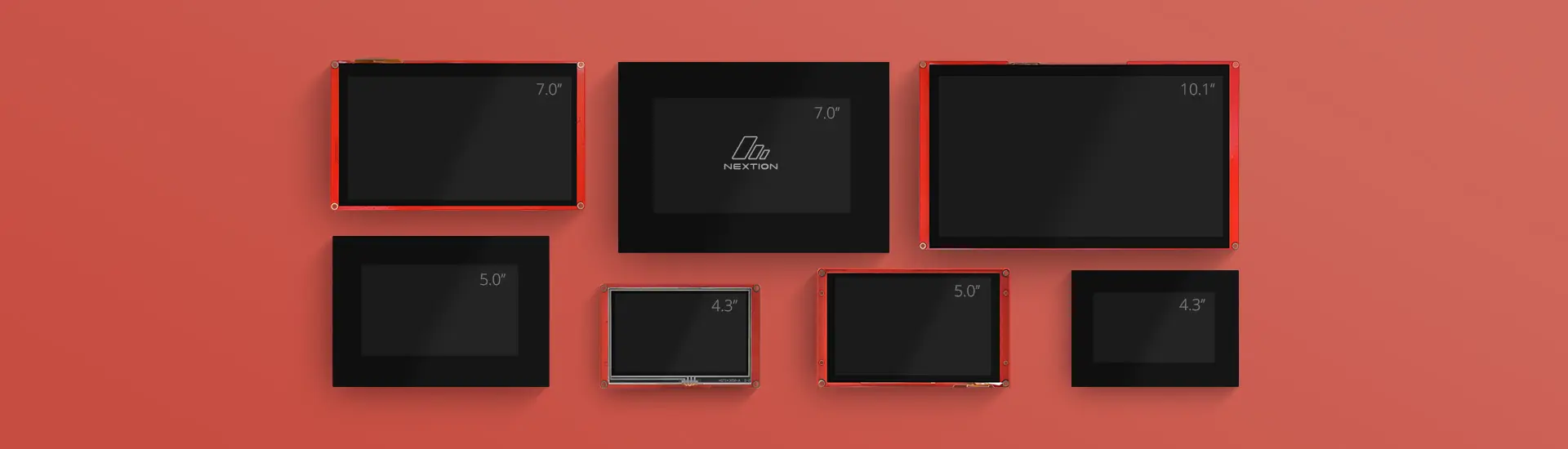

4.3″, 5.0″, 7.0″ and 10.1″ display size in Nextion Intelligent Series are now available.
The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc. Check it out from below table!
For Intelligent Series, users can develop the HMI GUI project via the free latest Nextion Editor software version 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.
The Intelligent Series is an advanced and powerful HMI solution for you.
INTELLIGENT SERIES FEATURES
– Available Display Size in 4.3″, 5.0″, 7.0″ and 10.1″
– RGB 65K Resistive/Capacitive touchscreen

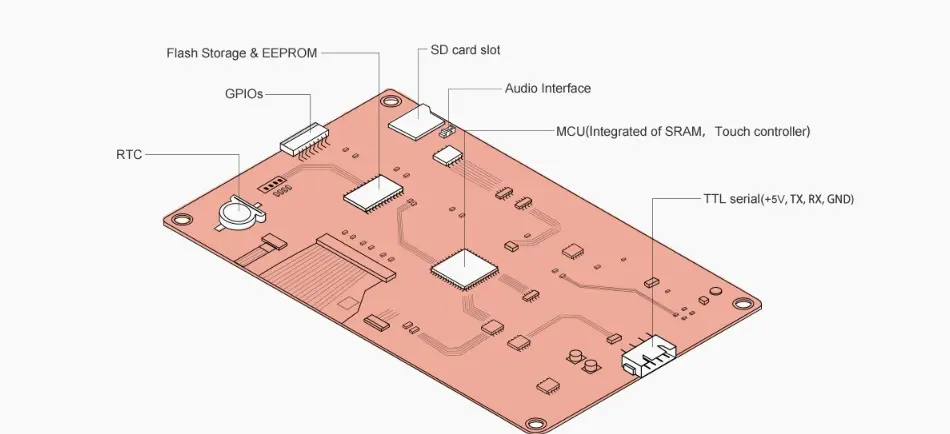

– Onboard MCU 200MHz and up to 128MB for HMI project
– Onboard RTC，EEPROM, 8 digital GPIOs (2 PWM capable) and audio interface
– XH2.54 4P (+5V, TX, RX, GND) TTL serial interface
– 1% interval adjustable brightness
– CE and RoHS Compliant
EXCLUSIVE FUNCTIONS AND FEATURES FOR INTELLIGENT SERIES
- 1. Support Video Resouce
- 2. Support Animation Resouce
- 3. Support Audio Resource
- 4. Support PNG Picture Resource with Transparent Info
- 5. New Components(ComboBox, SLText, Gmov, Video, Switch, EXPicture)
- 6. Component Transparency Attribute
- 7. Component and Page Loading Effect
- 8. Component Move and Drag at Runtime
- 9. Anti-aliasing Gauge

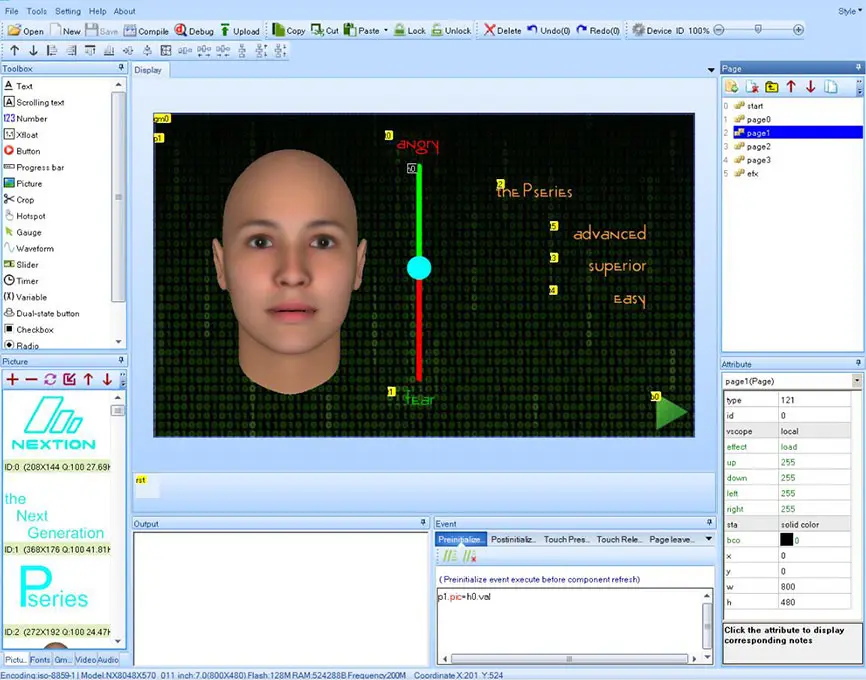

NEXTION EDITOR SOFTWARE
– Free and Easy-to-Use Nextion HMI software
– ASCII text based instructions for display side coding
– Assignable attribute value components at runtime
– Drag-and-Drop components for GUI design and interaction
– Built-in debugger for HMI project simulation
– User Event Code pane for GUI interaction and peripheral MCU communication
Notes: Nextion product numbering rules , eg. NX1060P101-011R-I
NX – Nextion
10 – Horizontal resolution: 32-320 40-400 48-480 80-800 10-1024
60 – Vertical resolution: 24-240 27-272 48-480 60-600
P – Series model: T=Basic series, K=Enhanced series, P=Intelligent series
101 – Display size: ”101″ means 10.1 inch; I – Display type: IPS; Y – with enclosure
R – Touch screen type: R=resistive touch, C=capacitive touch
ACCESSORIES
NEXTION MIDI I/O INTERFACE
Two 4-pin XH connectors for 5V power supply, TX, RX and GND allow this interface to be easily daisy-chained between either a power supply / USB to TTL serial adapter like the Nextion Foca Max, or any MCU (Arduino, etc.) on one side (J1) and a Nextion HMI display on the other side (J2). The on-board switch SW1 allows to select between 2 modes:
* PRGM: RX + TX signals are directly routed from J1 to J2 which allows to program the device on J2 by the device on J1 while the MIDI interface is idle.
* MIDI I/O: RX + TX signals from the device on J2 are converted and linked to the MIDI IN and MIDI OUT 5-pin DIN sockets.
NEXTION MICRO SD EXTENDER
1. Feel hard to reach the micro SD card slot?
2. Have to disassemble the product enclosure for the HMI project update?
3. Other extension tools are not working properly?
The Nextion Micro SD card extender helps you to access the SD card slot of the Nextion HMI display more conveniently. It supports the FAT32 Micro SD card as well as all series of Nextion HMI displays compatibilities.
NEXTION BOX SPEAKER FOR INTELLIGENT SERIES AUDIO PLAY
The BOX speaker is for the use of 4.3″, 5.0″, 7.0″, 10.1″ intelligent series HMI display without enclosure.
Input Power：1.5W
Frequency Range: 100Hz-3KHz
Connector：1.25mm pitch 2-pin female connector (1.25T-2-2A)
Wire Length: 250mm
Size: 31*28*14.8mm
FOCA MAX- USB TO TTL CONVERTER BOARD
Foca Max is a USB to TTL serial converter board with 5.5V2A output. it integrates a high power and energy-efficient DC-DC chip of TPS54331 for a wide voltage input with small voltage ripple. For USB to TTL conversion, the Foca Max can be power supplied by USB only or USB together with external DC 8-26V, The USB and external DC power supplies are isolated by using a diode (SS34) to avoid the current backflowed between them.
Note: as for the Nextion HMI display size less than 4.3”, you can only use the USB for power supply, size large than 4.3”, a external DC 8-26V for power supply is recommended.
EXPANSION BOARD FOR NEXTION DISPLAY I/O EXTENDED
The first expansion board for Nextion Enhanced and Intelligent HMI displays.
– for use with any of the 2.4″, 2.8″, 3.2″, 3.5″, 4.3″, 5.0″, 7.0″ Enhanced and Intelligent models.
Supports the Enhanced and Intelligent Nextion’s 8 Digital/PWM GPIOs
The board includes 6 buttons, 1 LED, 1 Piezo buzzer, and 0.1″/2.54mm breakout:Esc (IO 0),
Enter (IO 1), Left (IO 5), Right (IO 2), Up (IO 4) and Down (IO 3)LED (IO 6) and small PWM Piezo buzzer (IO 7).
NEXTION IO ADAPTER
The Nextion IO Adapter is made specially to work with Nextion Enhanced and Intelligent HMI Display Series
– for use with any of the 2.4″, 2.8″, 3.2″, 3.5″, 4.3″, 5.0″, 7.0″, 10.1″ Enhanced and Intelligent models.
This small board breaks out the Nextion’s GPIOs to 0.1 inch /2.54 mm headers,allowing users to conveniently connect external devices to the Nextion’s Digital/PWM GPIOs.
